Description
mountain tarp cable system Ultralight Tapered Tarp 7'/5' x 9'The Tarp This minimalist tarp tapers in width to provide more coverage where you need it and less where you don't. The curved ridge and edges produce a taut, wind shedding, pitch in the classic a frame configuration. Tapered shape uses space efficiently Curved ridge and edges provide a taut pitch Recycled fabric option Silpoly won't sag when the temperature drops Lower water retention than SilNylon Reflective tie outs Great for partnering with your
The Tarp
This minimalist tarp tapers in width to provide more coverage where you need it and less where you don't. The curved ridge and edges produce a taut, wind-shedding, pitch in the classic a-frame configuration.
- Tapered shape uses space efficiently
- Curved ridge and edges provide a taut pitch
- Recycled fabric option
- Silpoly won't sag when the temperature drops
- Lower water retention than SilNylon
- Reflective tie-outs
- Great for partnering with your Bug Bivy or our 1P Bug Shelter.
Tie-outs
Perimeter tie-outs are located at each end of the ridge (2), the corners (4), and the midpoints of each side (2). There are hang loops located at each end of the ridge (2), the middle of the ridge (1), about 12" in on the ridge at the head end (1), and about 10" in on the ridge at the narrow end (1).
There is an additional tie-out (1) on the ridge about 10" in from the narrow end to allow the option to pitch with an improvised rear beak. To make the beak, move the guyline from the rear apex to the shock cord loop on the ridge tie-out. We recommend using a fastline clip (included in the optional rigging kit). Stake out the rear corners so the rear edge is pulled taut between the corners.
Note that the color of the UltraGrid reinforcements may vary from what's shown.
Compatible with:
- Bug Bivy: Y-zip, Chest zip, Ridge zip
- Wind Bivy
- Simple Tub
- Tub-floor
- Bug Canopy
- 1P Bug Shelter
Seam Sealing
You'll need to seam seal the ridgeline of this tarp prior to use as per these instructions (or use our service).
Made in the USA from imported fabric.
Specifications
Fabric Options
Eco Silpoly:
- Fabric: 20D SilPoly - RECYCLED
- Coating: Sil/PU Blend
- Hydrostatic Head: ~2000mm
- Learn more about material considerations on our Materials Page.
Membrane Silpoly:
- Fabric: 15D SilPoly
- Coating: Sil/PU Blend
- Hydrostatic Head: ~2000mm
Weight
Eco Silpoly:
- Tarp (9' length): 8.5 oz | 240g
- Tarp (10' length): TBD
- Stuff sack: 0.3 oz | 8g
- Landfill waste: 4 oz (waste from in-house manufacturing)
Membrane Silpoly:
- Tarp (9' length): 6.8 oz | 192g
- Tarp (10' length): TBD
- Stuff sack: 0.2 oz | 6g
- Landfill waste: TBD
Dimensions
9' Length Option:
- Front width: 7'-2" | 2.18m
- Rear width: 5'-2" | 1.57m
- Length: 9'-2" | 2.79m
- Packed size* (Eco): 8" x 5" x 2" | 20cm x 13cm x 5cm
- Packed size* (Membrane): 7" x 5" x 1.5" | 18cm x 13cm x 4cm
- Packed size is measured with tarp folded in the provided stuff sack. It can squish down to roughly half the stated size.
10 ft length Option:
- Front width: 7'-2" | 2.18m
- Rear width: 5'-2" | 1.57m
- Length: 10' | 3.05m
- Packed size (Eco): 8" x 5" x 2" | 20cm x 13cm x 5cm
- Packed size* (Membrane): 7" x 5" x 1.5" | 18cm x 13cm x 4cm
- Packed size is measured with tarp folded in the provided stuff sack. It can squish down to roughly half the stated size.
Required items:
- These items are not included
- Trekking poles (or other support for front and rear)
- Rigging
- Stakes: 6 Minimum
- Silicone Seam Sealer

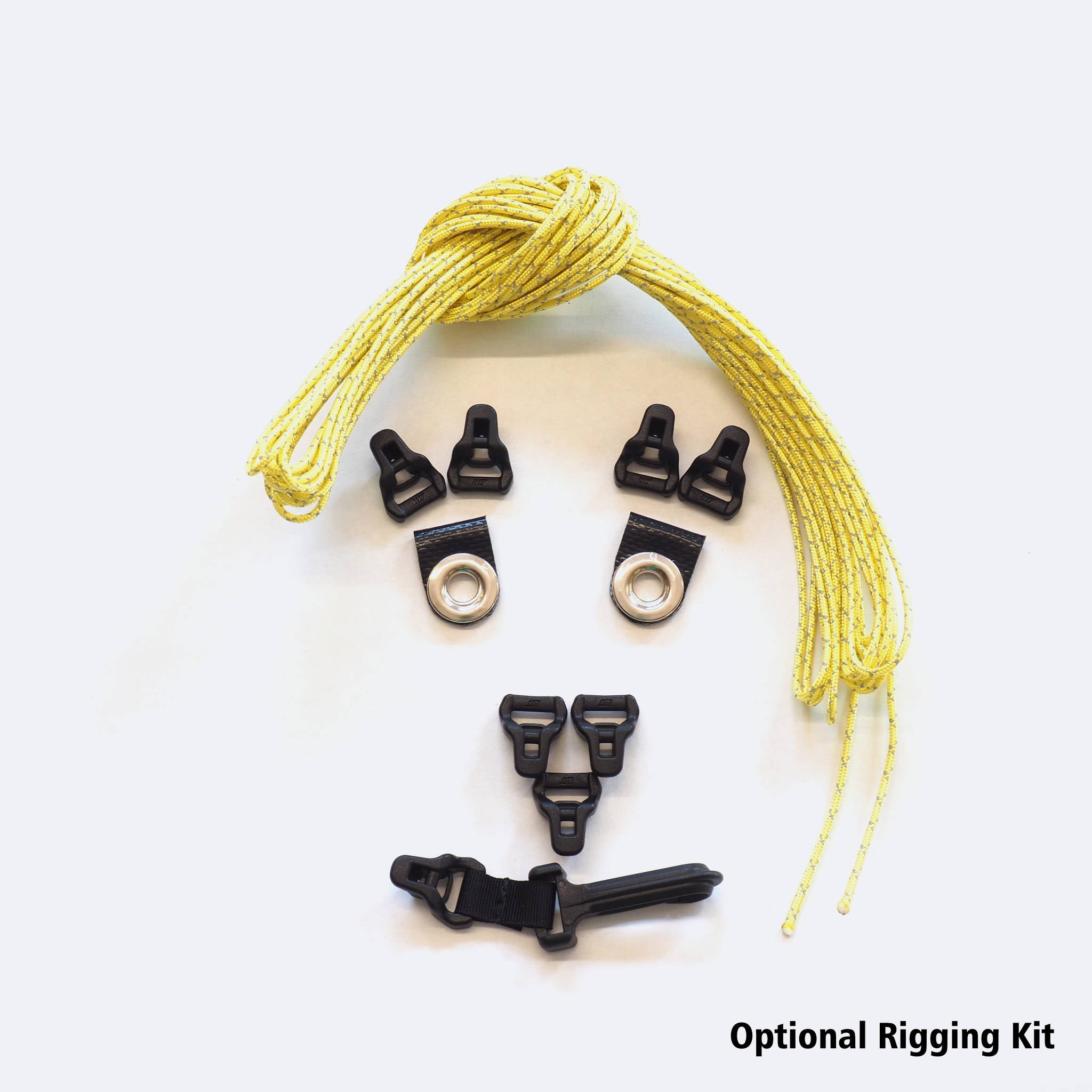

Optional Rigging Kit:
- 30 ft x 1.8mm UHMWPE core cord (0.79 oz | 22.5g)
- 7 x 10mm Tensionlock Tensioners (0.26 oz | 7.5g)
- 1 x 10mm Fastline Clip (0.12 oz | 3.5g)
- 2 x Guyline Grommets (0.19 oz | 5.5g)
Rigging
An optional rigging kit is available for those who wish to set up their tarp per our recommendations.
The kit comes with the following items:
- 30 ft of 1.8mm UHMWPE core guyline with reflective tracer
- 7 x 10mm Tensionlock guyline tensioners
- 1 x Fastline clip
- 2 x Guyline Grommets
Installation:
- Cut your guylines to the lengths shown below.
- Front corners: 40" x 2
- Rear corners: 30" x 2
- Front apex: 96" x 1
- Rear apex: 80" x 1
- Midpoints: 20" x 2
- Install the tensioners using a girth hitch (see images below). Install at all perimeter tie-outs except the rear apex
- Clip the fastline clip to the rear apex.
- Install guylines into the tensioners:
- Tie a loop in one end of each guyline. We prefer to use a bowline knot.
- Thread the guylines through the tensioners as shown in the photos below. For the two guylines that attach to the ridgeline, slip a grommet onto the guyline prior to threading it through the tensioner.
- Tie a knot in the untied end of each guyline. We use a simple overhand knot.
Girth Hitch:
